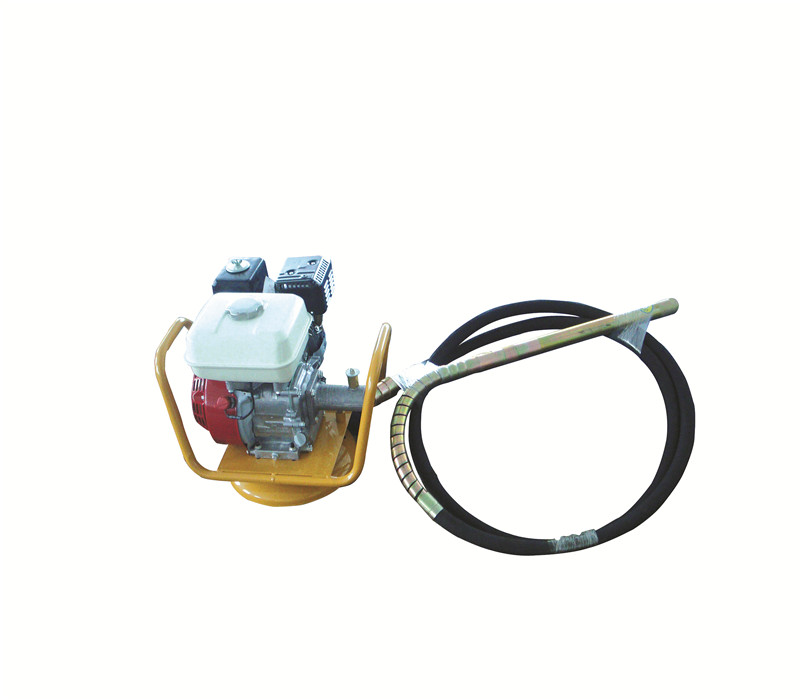

0501振動棒 Vibrator poker
1.用途APPLICATION
混凝土振動棒，用來加固混泥土，刪除所有被困在混泥土中的氣泡,廣泛應用于建筑、交通、水利、港口、礦山、冶金等。它可以適應任何類型的應用程序中。振動棒棒頭和軟軸，可以很容易地結合和快速地更換和匹配發動機或電機進行工作。
A concrete vibrator poker is used to consolidate cement and remove all the trapped air bubbles to give you the toughest cement possible, widely used in construction, transportation, water conservancy, port, mine and metallurgy, etc. It can be adapted to every type of application, vibrator Heads and shafts can be easily combined and rapidly exchanged to match the engine or motor to the job.
2.技術參數TECHNICAL DATA
3.配件圖和清單PARTS DIAGRAM & PARTS LIST
a.配件圖PARTS DIAGRAM
b.配件清單PARTS LIST
No.序號 | Description | 描述 | Qty.數量 |
1 | Engine | 引擎 | 1 |
2 | Nut M8 | 螺母M8 | 4 |
3 | Key 6×35 | 關鍵的6×35 | 1 |
4 | Screw 6×1 | 螺釘6×1 | 1 |
5 | Driving Shaft | 傳動軸 | 1 |
6 | Inner Hex Connector | 內六角連接器 | 1 |
7 | Fixing Plate | 固定板 | 1 |
8 | Flat Washer φ8 | 平墊圈φ8 | 4 |
9 | Spring Washer φ8 | 彈簧墊圈φ8 | 8 |
10 | Whorl Rod 5/16"-24 | 螺紋桿5/16 -24 | 4 |
11 | Steel Ball | 鋼球 | 1 |
12 | Spring | 春天 | 1 |
13 | Sheath | 鞘 | 1 |
14 | Shaft Circlip φ54 | 軸擋圈φ54 | 1 |
15 | Turning Frame | 將框架 | 1 |
16 | Pole | 極 | 1 |
17 | Nut | 螺母 | 1 |
18 | Engine Fixing Plate | 發動機固定板 | 2 |
19 | Nut M8 | 螺母M8 | 4 |
20 | Base Plate | 基板 | 1 |
21 | Support Rubber Stick | 支持橡膠棒 | 4 |
22 | Shaft Circlip φ28 | 軸擋圈φ28 | 1 |
23 | Flexible Shaft Plug | 撓性軸塞 | 1 |
24 | Connector | 連接器 | 1 |
25 | Protecting Tube | 保護管 | 1 |
26 | Outer Tube | 外管 | 1 |
27 | Flexible Shaft | 撓性軸 | 1 |
28 | Shaft Connector | 軸連接器 | 1 |
29 | Double Connector | 兩個連接器 | 1 |
30 | Single Connector | 單獨的連接器 | 1 |
31 | Small Oil Seal | 小油封 | 2 |
32 | Small Bearing | 小型軸承 | 2 |
33 | Nut | 螺母 | 2 |
34 | Spring | 春天 | 1 |
35 | Big Bearing | 大軸承 | 1 |
36 | Big Oil Seal | 大的油封 | 1 |
37 | Stick | 堅持 | 1 |
38 | Cover Tube | 蓋管 | 1 |
39 | Vibrator Head | 振動器頭 | 1 |
