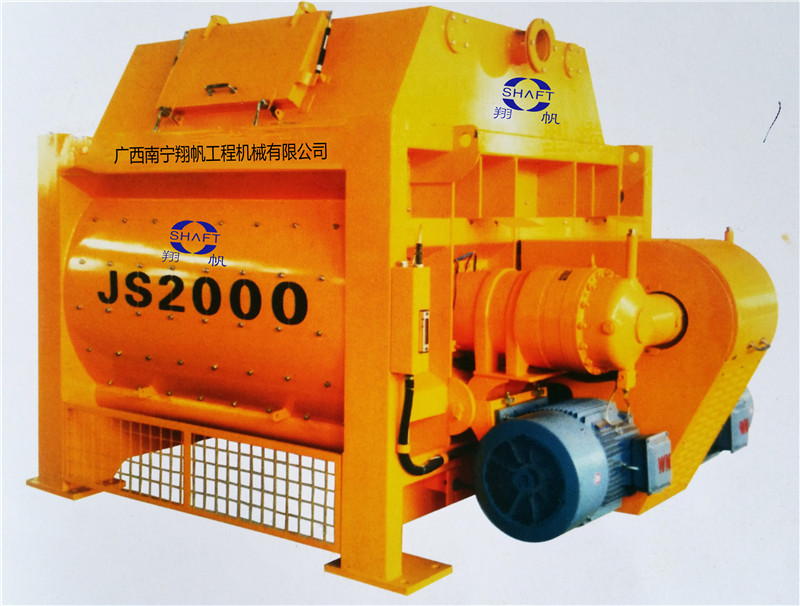

0201 JS2000混凝土攪拌機 Concrete Mixer
0201 JS2000混凝土攪拌機concrete mixer
JS500攪拌機技術參數 JS500concrete mixer
出料容量(L) 500
進料容量(L) 800
生產率(m 3/h ) 25
骨料最大粒徑(卵石／碎石)mm ≤40/50
攪拌電機功率（KW） 18.5
卷揚電機功率(KW) 5.5
攪拌葉片轉速（r/min） 31
提升電機轉速（r/min） 37
外形尺寸(mm)（長×寬×高) 3000×1900×2900
整機重量（Kg） 4000
JS500 concrete mixer, belongs to the dual-axial concrete mixer, mixing for harsh, plasticity, fluidity, lightweight aggregate and all kinds of mortar, etc. Cylinder wear resistant cast steel liner with high manganese and mixing blades, with a characteristic of a strong and durable, easy to change, the machine is used with the batching machine, which become the various types of mixing station, applicable to all kinds of prefabricated factories and all kinds of construction sites, roads, Bridges, airports, tunnels and other projects. This machine is reasonable design, compact structure, convenient operation, with good mixing quality and high production efficiency, low energy consumption, low noise and the advantages of long service life.
Discharge capacity (L) :500
Feeding capacity (L) :800
Productivity (3 m/h) :25
The largest aggregate diameter (pebble/gravel) mm 40/50 or less
Mixing motor power (KW): 18.5
Winding motor power (KW): 5.5
Mixing blade speed (r/min) :31
Improve motor speed (r/min) :37
Overall dimensions (mm) (length x width x height) :3000 * 1900 * 1900
The weight:4000
